Commercial Ventilated Cooling Bakery Tray Refrigerator Freezer Rack Design Large Capacity Cold Storage For Bakery Central Kitchen

Tray Refrigerator is a high-standard commercial refrigeration and storage device exclusively optimized for professional bakeries and central kitchens. Different from ordinary refrigerators, this unit adopts a specialized slide-in baking tray structure design, making it a multi-functional integrated solution tailored for bakery tray storage, low-temperature fermentation, rapid freezing and fresh-keeping preservation, which perfectly matches the standardized operating procedures of modern baking and commercial catering industries.
Product parameters
Model Product Name Product Dimensions (mm) Net Capacity (L) Cooling System Inner Temperature Range Refrigerant Voltage / Frequency Rated Power (W) Net Weight (kg)
GN620AR/F(D1) Large Single Door Ventilated-cooling Refrigerated/Freezer GN Pan Cabinet 620×800×1980 395L (90×13 Pans / 75×16 Pans) Ventilated Cooling -5℃~+5℃ / -22℃~-18℃ R-134a 220V/50Hz/16A 374 / 535 107
GN620AR/F(D2) Large Double Door Ventilated-cooling Refrigerated/Freezer GN Pan Cabinet 1150×800×1980 865L (90×26 Pans / 75×32 Pans) Ventilated Cooling -5℃~+5℃ / -22℃~-18℃ R-134a 220V/50Hz/16A 600 / 843 162
GN620AR/F(D3) Large Triple Door Ventilated-cooling Refrigerated/Freezer GN Pan Cabinet 1800×800×1980 1330L (90×39 Pans / 75×48 Pans) Ventilated Cooling -5℃~+5℃ / -22℃~-18℃ R-134a 220V/50Hz/16A 1050 / 1146 217

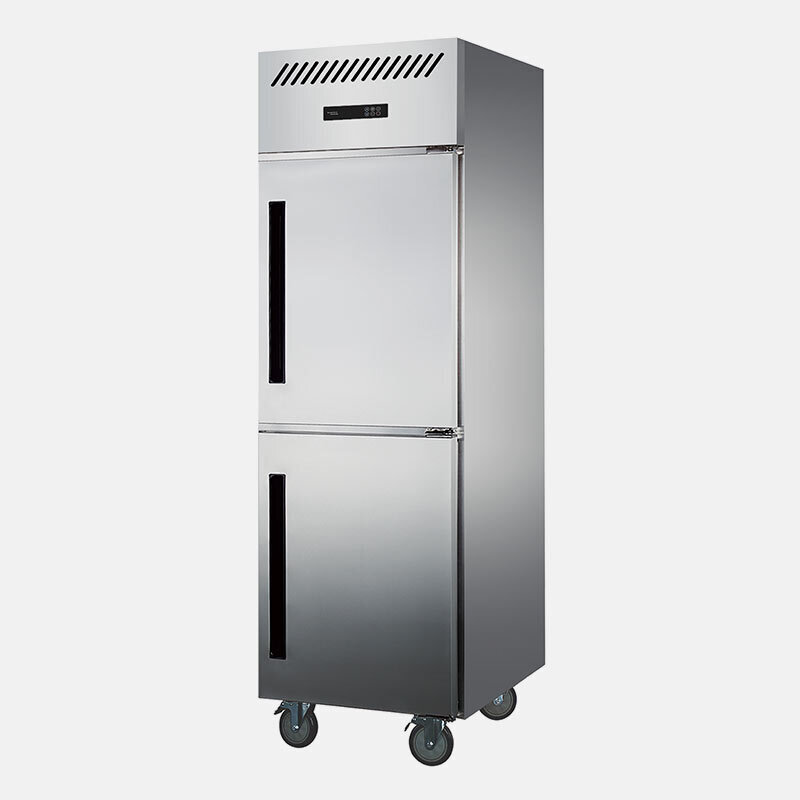

GN620AR/F(X2) Small Double Door Ventilated-cooling Refrigerated/Freezer GN Pan Cabinet 620×800×1980 395L (90×12 Pans / 75×16 Pans) Ventilated Cooling -5℃~+5℃ / -22℃~-18℃ R-404a 220V/50Hz/16A 374 / 535 107

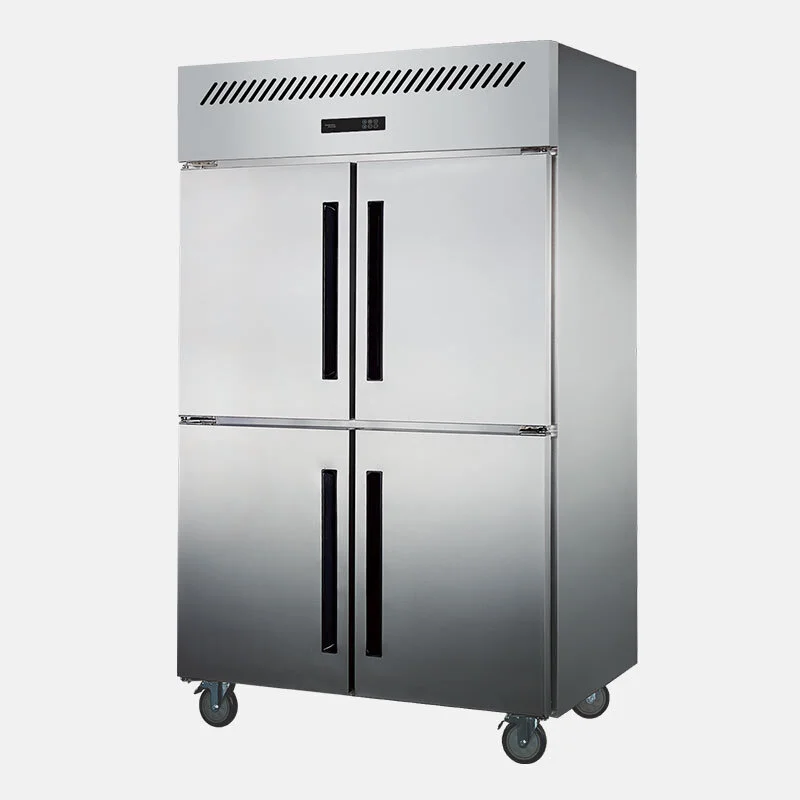

GN620AR/F(X4) Small Four Door Ventilated-cooling Refrigerated/Freezer GN Pan Cabinet 1150×800×1980 865L (9024 Pans / 7532 Pans) Ventilated Cooling -5℃~+5℃ / -22℃~-18℃ R-404a 220V/50Hz/16A 600 / 843 162

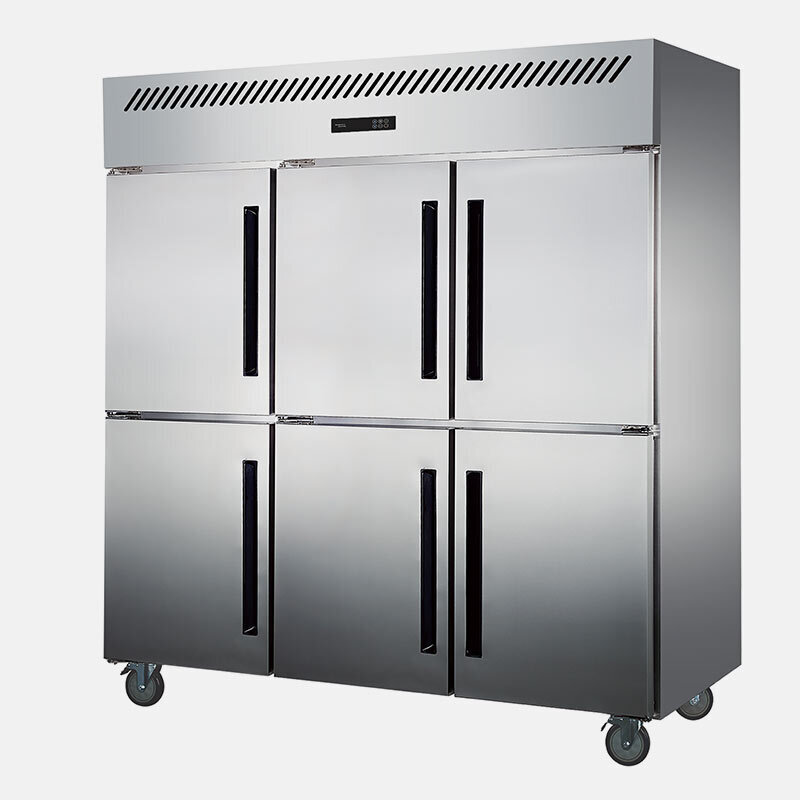

GN620AR/F(X6) Small Six Door Ventilated-cooling Refrigerated/Freezer GN Pan Cabinet 1800×800×1980 1330L (90×36 Pans / 75×48 Pans) Ventilated Cooling -5℃~+5℃ / -22℃~-18℃ R-404a 220V/50Hz/16A 1050 / 1146 217

Product Description:

It is highly applicable for layered classified storage, constant-temperature refrigeration and low-temperature temporary preservation of various bakery and catering materials, including bread, finished pastries, raw dough, bakery semi-finished products and cooked food items.

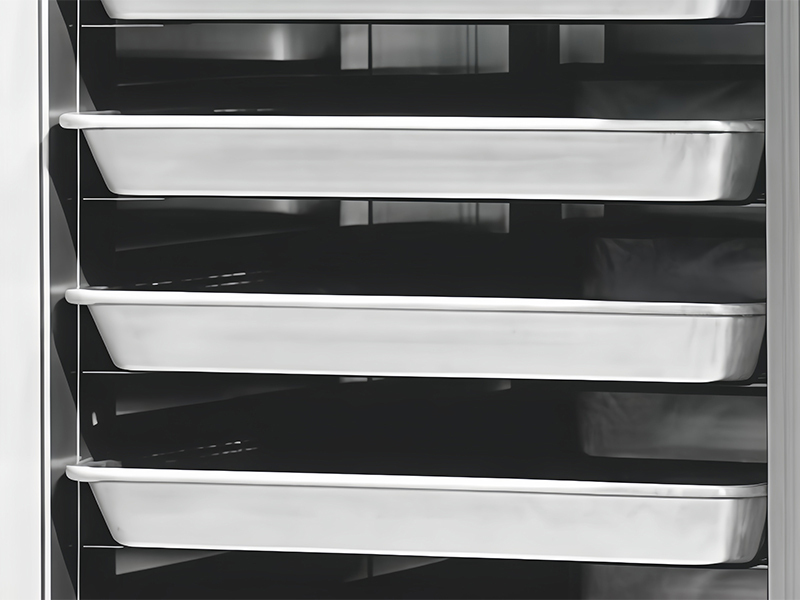

Compatible with standard baking trays, the cabinet allows smooth sliding and placement of trays, realizing neat material classification and effectively avoiding cross-odor and secondary contamination. The user-friendly slide-in structure simplifies loading and unloading operations, greatly improves daily preparation efficiency, and optimizes kitchen layout to save valuable commercial floor space.

Product features:

We support comprehensive non-standard customization services to satisfy diverse industrial demands.

Based on customers’actual site dimensions, operating conditions and professional industry specifications, we can customize the equipment’s body material, overall outer dimensions, internal tray layers, inter-layer spacing and door styles. This fully adapts to personalized installation and customized usage requirements for all types of commercial kitchens.
